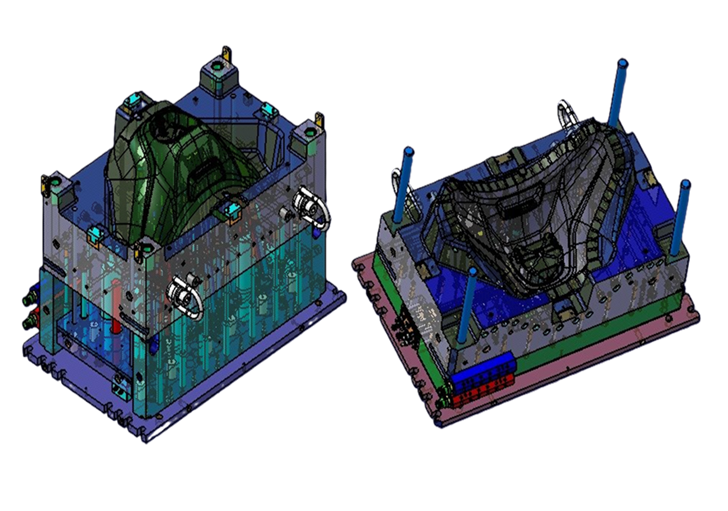

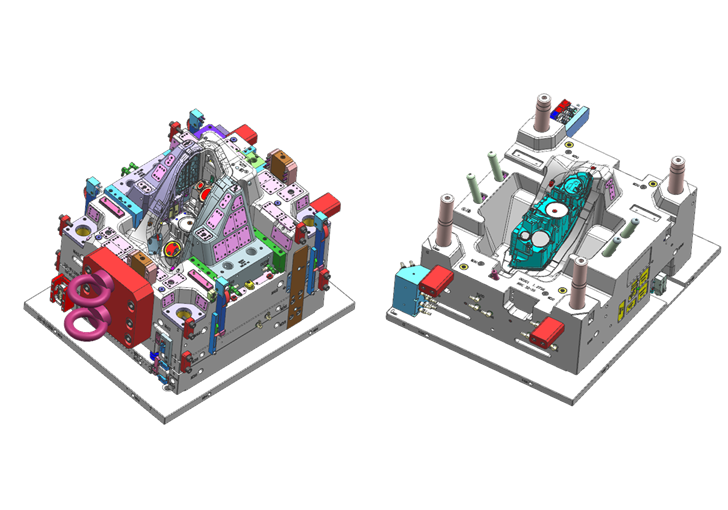

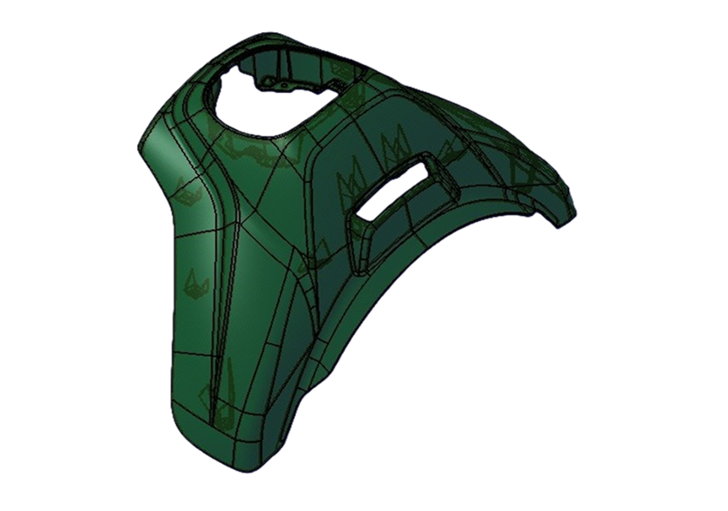

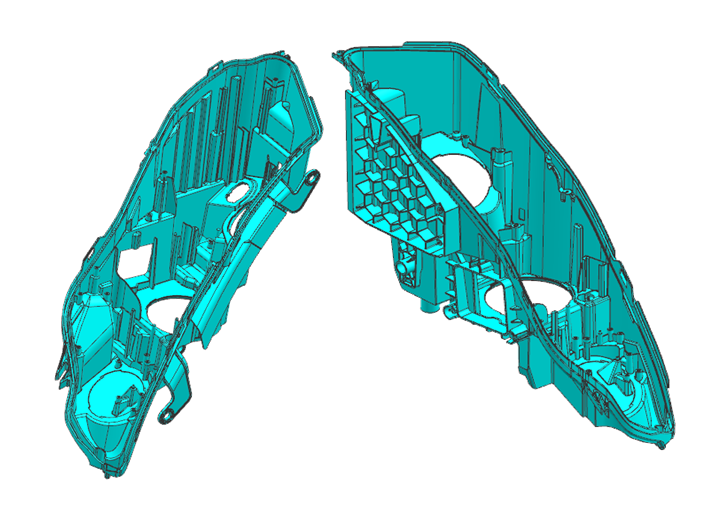

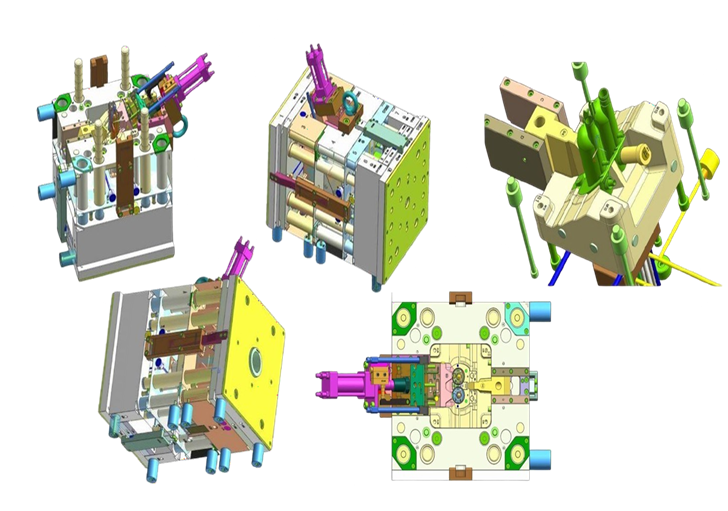

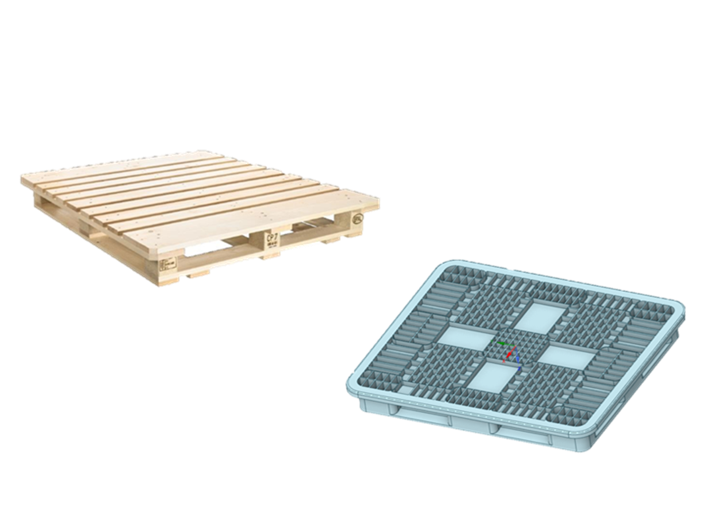

Press Tonnage: 900 Ton
Shrinkage: 1.2%
Material: PP
Hot runner system: Synventive Manifold
Application:

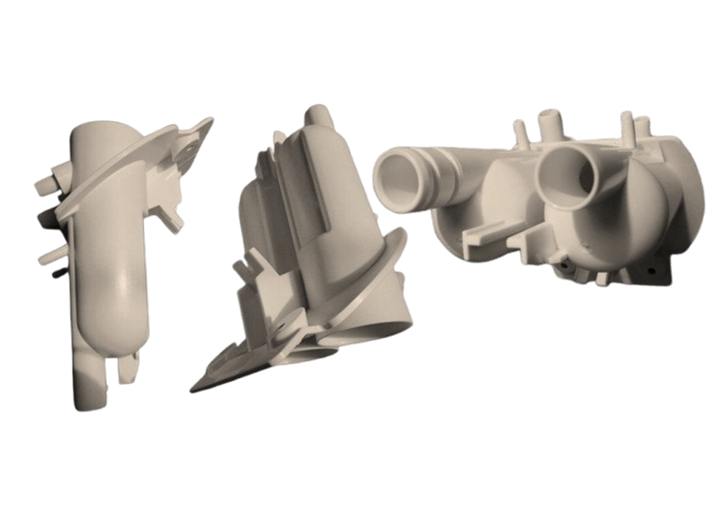

The Venturi filter is a precision-engineered component used in medical devices for
controlled air and fluid flow regulation, commonly found in respiratory equipment and
infusion systems.
Our Role:
Philo Design Technologies was responsible for this part's complete mold design and
development, ensuring high dimensional accuracy, smooth internal flow paths, and
manufacturability.
Design Highlights:
• Optimized for efficient airflow and pressure control
• Complex geometry with precise core and cavity detailing
• Designed for multi-cavity injection molding with minimal warpage
• Use of high-temperature, medical-grade polymers
Application:

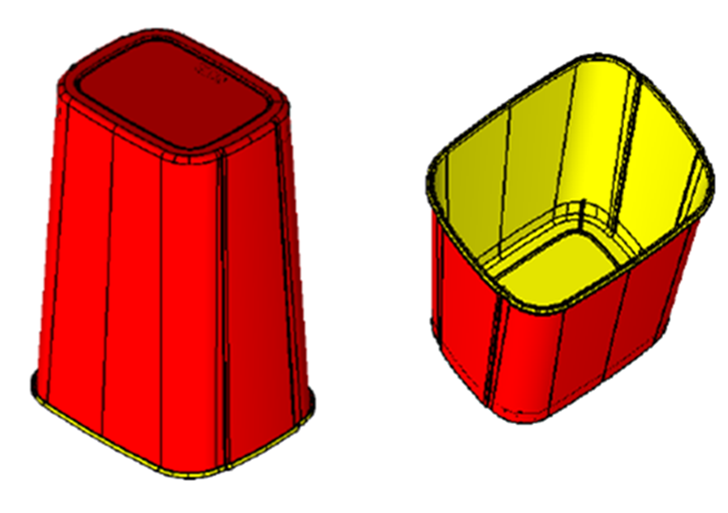

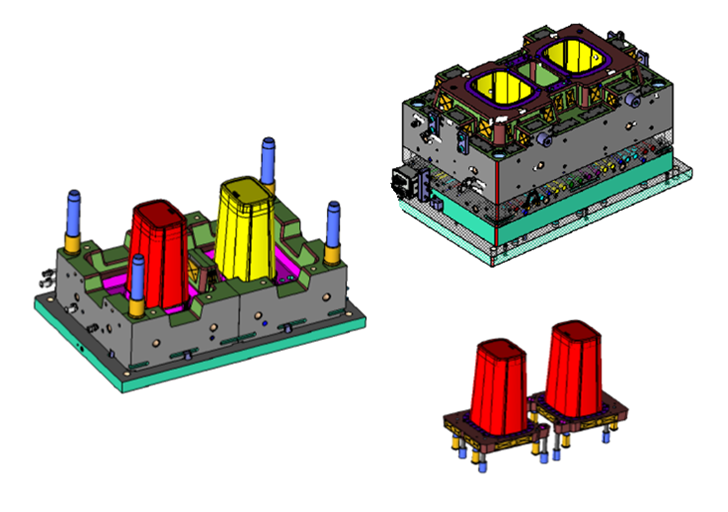

This storage bin is designed for multi-purpose industrial and commercial use, ideal for
organizing and storing
materials efficiently in compact spaces.
Our Role:
Philo Design Technologies developed the complete mold design for this product, focusing on
structural strength,
mold longevity, and space-efficient form.
Design Highlights:
• Press Tonnage: 1100T
• Material: Polypropylene (PP)
• Shrinkage: 1.7%
• Hot Runner System: Synventive manifold
Design Advantages:
• Tall structure with a narrow base for vertical stacking
• Optimized wall thickness and rib pattern for load-bearing capability
• Efficient cooling layout to ensure minimal cycle time
Application:

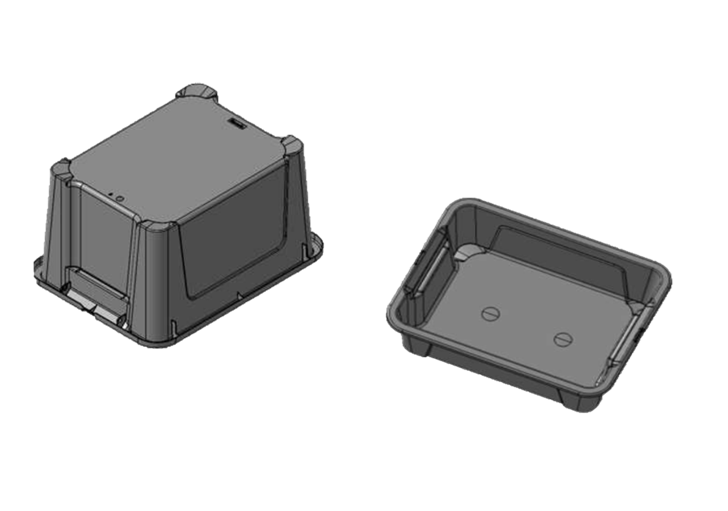

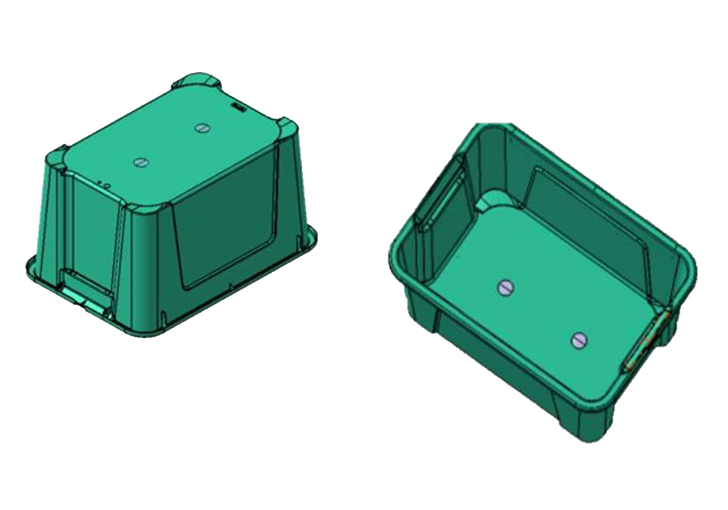

This 25-liter stackable storage box is used across various industries for efficient material
handling and logistics.
Its design supports easy viewing, stacking, and secure transport of goods.
Our Role:
Philo Design Technologies handled the complete mold design for this high-volume product,
ensuring dimensional
stability, durability, and cycle time optimization.
Design Highlights:
• Dimensions: 445 x 342 x 229 mm
• Material: Polypropylene (PP)
• Shrinkage: 1.6%
• Injection Tonnage: 850T
• Hot Runner System (HRS): 2-drop sequential (Mold Masters)
• Robust ribbed structure for high stacking load
• Optimized wall thickness for uniform flow and minimal sink marks
Application:
The 45-liter BAC View Box is designed for industrial storage and logistics applications,
offering durability,
stackability, and optimal space utilization. Commonly used in warehousing, automotive, and
manufacturing
environments.
Our Role:
Philo Design Technologies provided the end-to-end mold design, incorporating advanced
features to support
consistent production and enhanced mold longevity.
Design Highlights:
• Dimensions: 553 x 389 x 304 mm
• Material: Polypropylene (PP)
• Shrinkage: 1.6%
• Injection Tonnage: 1000T
• Hot Runner System (HRS): 2-drop sequential (Mold Masters)

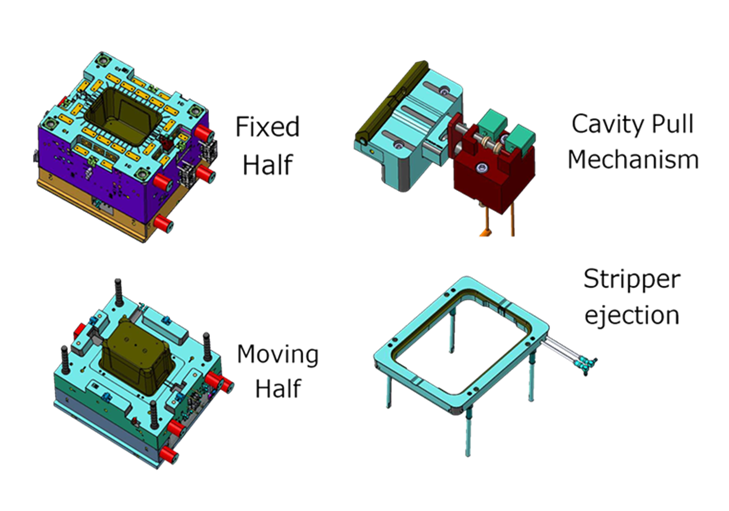

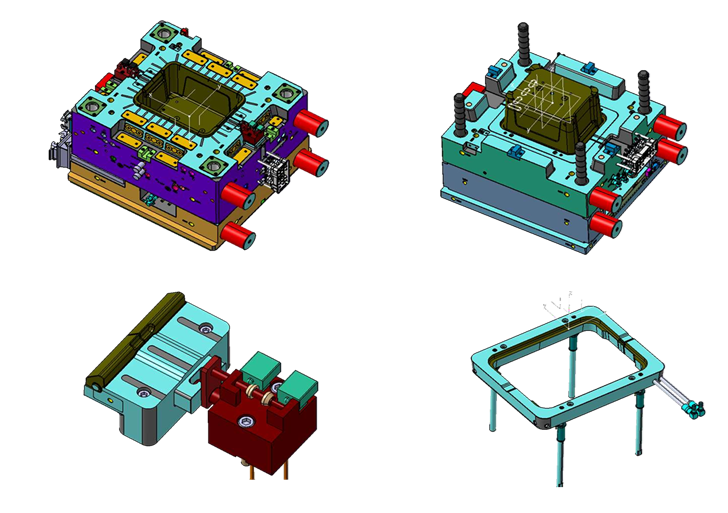

• Mold Details:
– Fixed Half: Cavity Pull Mechanism
– Moving Half: Stripper Ejection System
